Advanced Reactive Programming with Akka Streams: Complete Guide

Discover Akka Streams for Reactive Programming: A Complete Guide to Scalable and Resilient Systems with Java Examples and Best Practices.

Muhammad Owais Nizami

73 views

April 7, 2025

Advanced Reactive Programming with Akka Streams: Complete Guide

Reactive programming is

a fundamental pillar

for developing modern applications, especially scalable and resilient systems. Among the most powerful tools in this field is Akka Streams , a library based on the Akka actor model , designed to handle asynchronous data flows efficiently . In this comprehensive guide , we will explore what Akka Streams is, how it works , and how to use it to build robust and performant applications .

Introduction to Reactive Programming

Reactive programming is based on four fundamental principles:

  • Responsive: Systems that respond quickly to inputs.
  • Resilient: ability to manage failures and errors autonomously.
  • Elastic: adaptability of the system based on the load.
  • Message Driven: Asynchronous communication via messages.

These principles enable the development of applications capable of handling high volumes of data and requests in distributed environments.

What is Akka Streams and Why Use It?

Akka Streams is an open-source library integrated into the Akka framework, usable in both Java and Scala. It is based on the principles of the  Reactive Streams Manifesto , promoting asynchronous, non-blocking, and backpressure-managed systems. This makes it perfect for applications that process large amounts of data in real time, such as microservices, streaming systems, or distributed applications.

Akka Streams, an integral part of the  Akka toolkit , enables the creation of reactively managed data flows thanks to:

  • Back-pressure: A mechanism that allows you to control the flow of data and prevent system overload.
  • Error Handling: Native integration with Akka’s Actor model to ensure robustness and continuity of service.
  • Scalability: Seamless integration with microservices architectures, ideal for cloud and distributed applications.

Architecture and Design Patterns for Reactive Systems

To get the most out of Akka Streams, it is essential to understand some design patterns and architectures:

  • Circuit Breaker: Protects the system from cascading errors by isolating malfunctioning components.
  • Bulkhead Pattern: Separates workflows to prevent a failure in one component from compromising the entire system.
  • Load balancing: Techniques for balancing demands and ensuring high availability and resilience.

These patterns not only improve system reliability, but also facilitate maintenance and evolution of the software architecture.

Akka Streams Key Concepts

To master Akka Streams, you need to know its main components:

1. Source

The  Source is the source of the data, such as a list, database, or event stream. Example:

Source source = Source.range(1, 10);

Here we create a Source that outputs numbers from 1 to 10.

2. Flow

The Flow defines the transformations on the data. It is the heart of the pipeline. Example:

Flow flow = Flow.of(Integer.class).map(x -> x * 2);

This Flow multiplies each element by 2.

3. Sink

The Sink is the destination of the processed data, such as a console or database. Example:

Sink> sink = Sink.foreach(System.out::println);


4. Graph

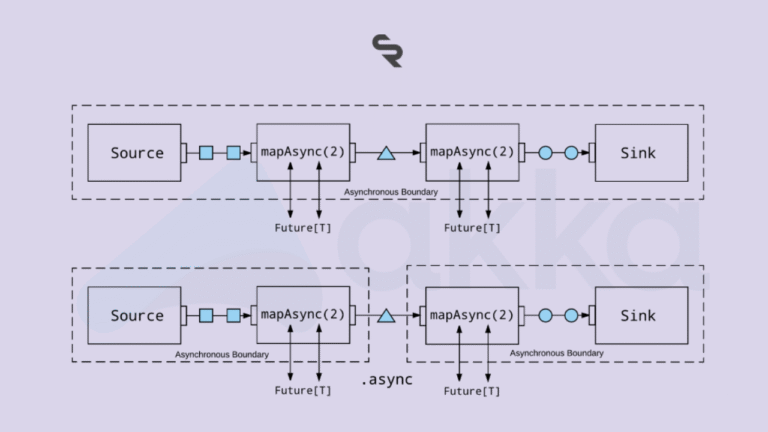

For complex flows, a Graph is used , which combines multiple Sources, Flows and Sinks into advanced pipelines.

Backpressure: The Secret of Stability

Akka Streams natively handles backpressure : if a consumer is slow, the producer automatically slows down, avoiding overloads. This makes it ideal for mission-critical systems.

Getting Started with Akka Streams: A Practical Example

Here is a basic example of building a stream in Java with Akka Streams. We read a list of numbers, transform them and print them.

import akka.actor.ActorSystem;
import akka.stream.ActorMaterializer;
import akka.stream.javadsl.Source;
import akka.stream.javadsl.Flow;
import akka.stream.javadsl.Sink;
import akka.NotUsed;

public class AkkaStreamsExample {
    public static void main(String[] args) {
        ActorSystem system = ActorSystem.create("AkkaStreamsExample");
        ActorMaterializer materializer = ActorMaterializer.create(system);

        Source source = Source.range(1, 10);
        Flow flow = Flow.of(Integer.class).map(x -> x * 2);
        Sink> sink = Sink.foreach(System.out::println);

        source.via(flow).to(sink).run(materializer);
    }
}

Code Explanation

  1. ActorSystem and Materializer : Required to run the flow.
  2. Source : Generate numbers from 1 to 10.
  3. Flow : Multiply each number by 2.
  4. Sink : Print the results.
  5. run() : Starts the flow.

The result will be : 2, 4, 6, …, 20.

Testing and Monitoring Strategies

Implementing effective tests is essential to ensure system stability:

  • Unit Testing: Isolated testing of components using frameworks like ScalaTest.
  • Integration Testing: simulations of real flows to test the interaction between the various components.
  • Monitoring: Using tools like Prometheus and Grafana for real-time performance tracking and debugging.

When to Use Akka Streams?

Perfect for:

  • Real-time data processing (e.g. log analysis).
  • Highly concurrent distributed applications.
  • Scalable and resilient microservices.

Less suitable for simple, static data flows.

Conclusion

Reactive programming and the use of Akka Streams are a cutting-edge solution for developing applications that require high scalability and resilience. Adopting these tools means being able to manage complex data flows and guarantee a fast and reliable response to users. With a powerful API and backpressure management, it is an indispensable tool for complex projects. Start with a basic example, explore Graphs and discover how to revolutionize your software development.
